Laser-guided measurement
High-precision laser sensing provides a reference for floor leveling across the work area.

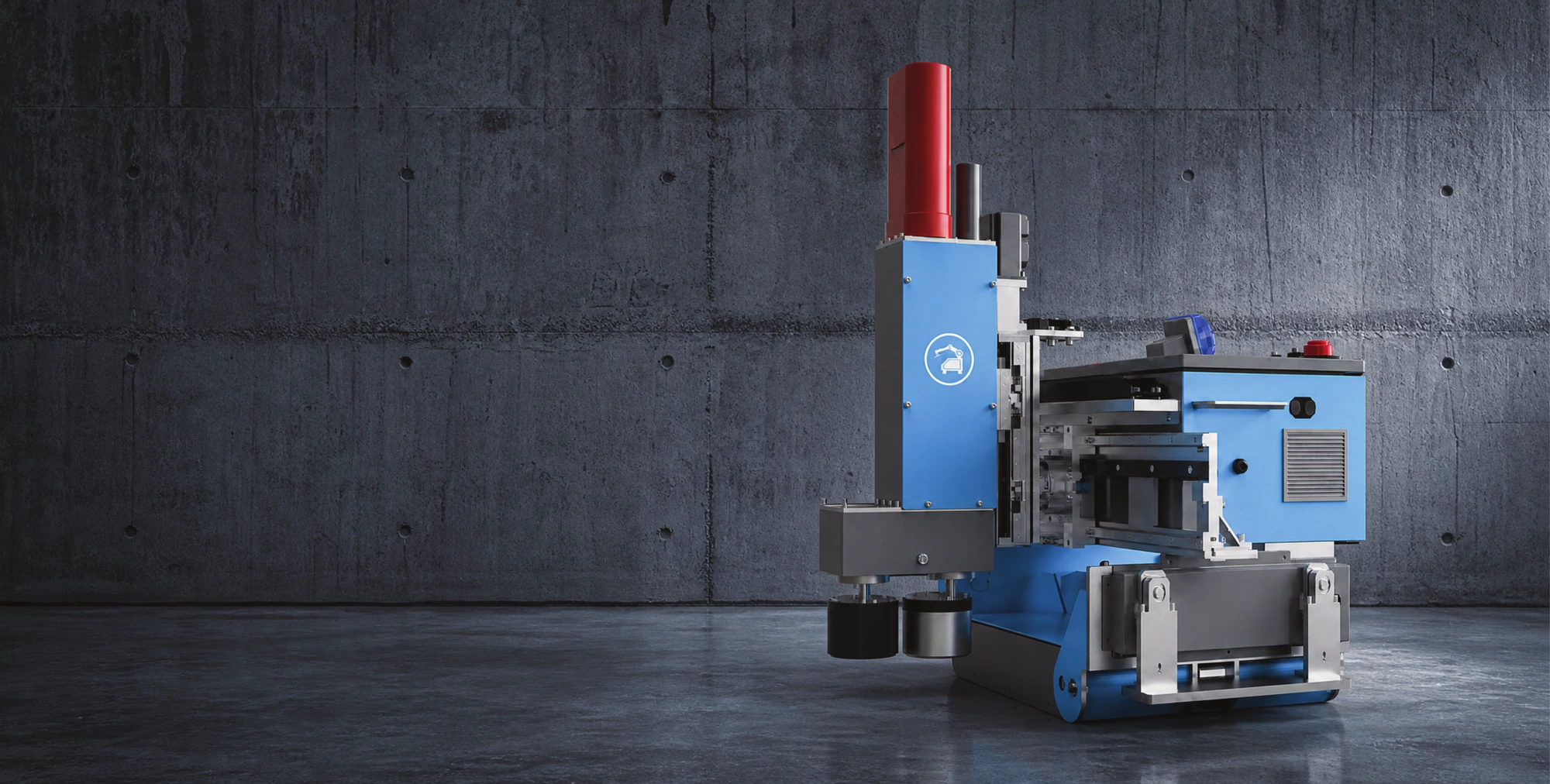

Floor Leveling Robot
Floor Leveling Robot
A laser-guided mortar leveling robot for preparing floor substrates in residential renovations and commercial fit-outs. Its dual-head system supports the leveling workflow before the final flooring is installed.
Laser-guided mortar leveling for substrates beneath tile, wood, resilient flooring and carpet.
ENGINEERED FOR THE WORK AHEAD.Discover the details
24 m²/h
Listed productivity8–10 hours
Operating time65 kg
Machine weight01 / THE TECHNOLOGY
Product capabilities
Laser-guided mortar leveling for substrates beneath tile, wood, resilient flooring and carpet.
Dual-head leveling system
The brochure describes a dual-grinding-head system for forming a continuous, dense mortar substrate.
Floor preparation workflow
The documented process covers base preparation, surveying and datum setting, mortar mixing, robotic leveling, compaction and curing.
Battery-powered operation
A lithium-ion battery provides a listed operating time of 8–10 hours.
02
Construction workflow
The documented process covers base preparation, surveying and datum setting, mortar mixing, robotic leveling, compaction and curing.
Base layer preparation
Surveying, layout and datum setting
Mortar mixing
Robotic leveling
Compaction and troweling
Regular curing
03 / ON SITE
Built for real spaces.

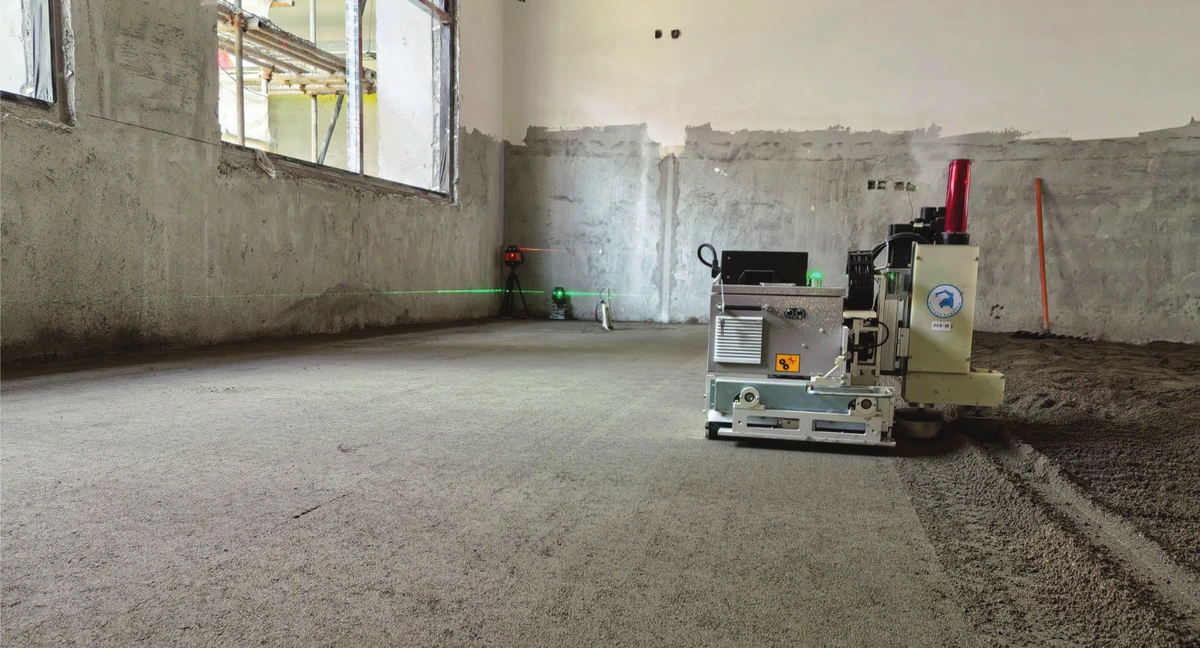

Classroom floor leveling

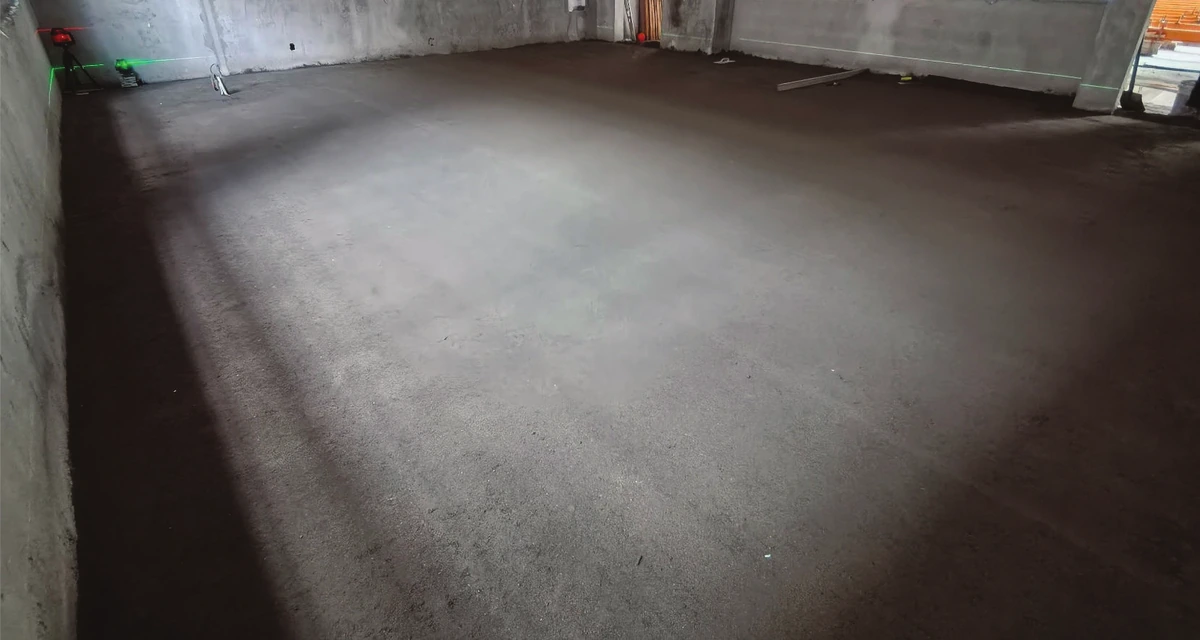

Finished leveling surface
04 / SUPPORTING EQUIPMENT
The workflow, connected.

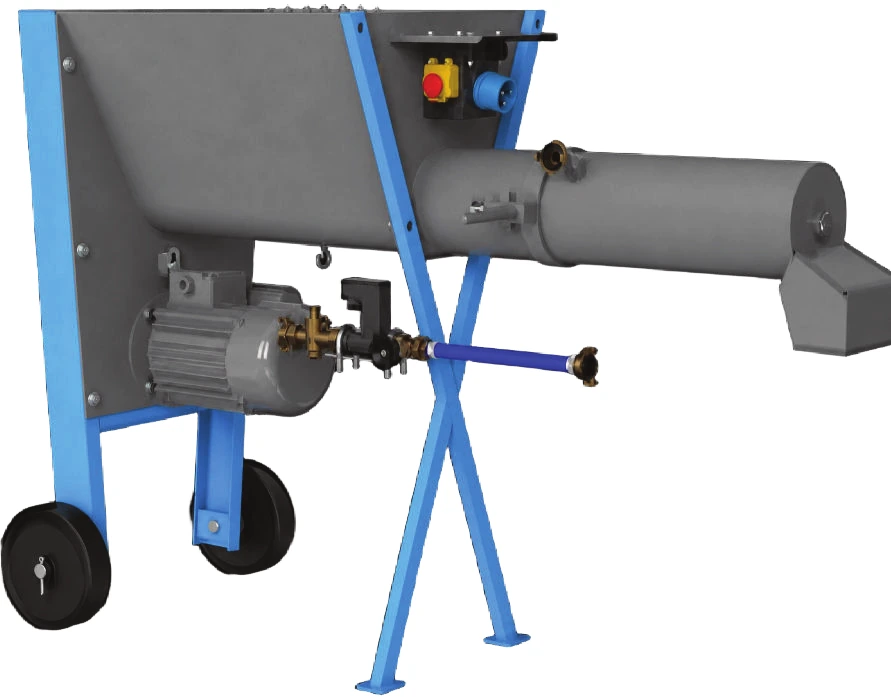

Continuous mixer

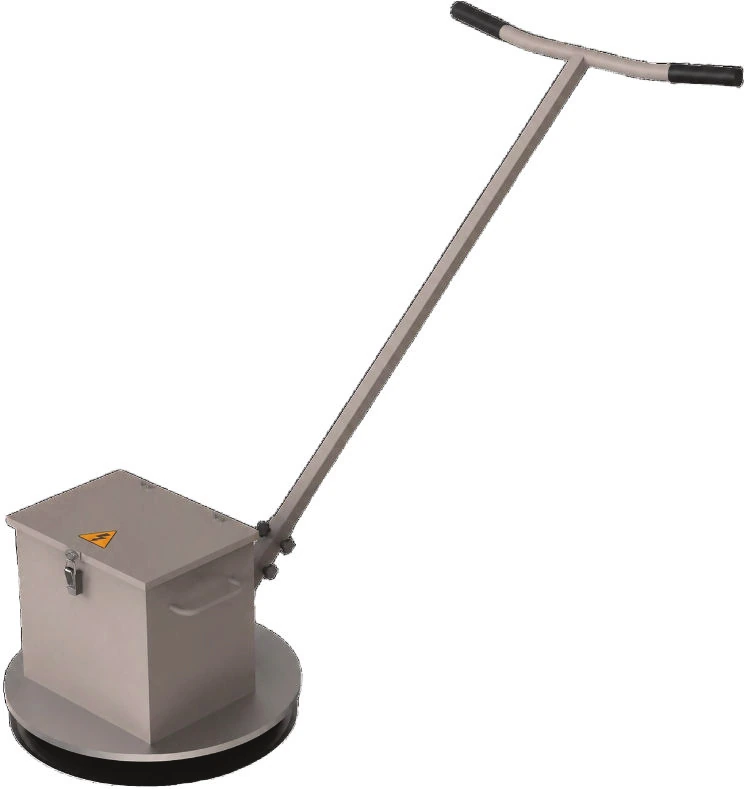

Floor grinding machine
05 / TECHNICAL SPECIFICATIONS
Know your equipment.
| Overall dimensions | 770 × 750 × 620 mm |
|---|---|
| Machine weight | 65 kg |
| Power supply | Lithium-ion battery |
| Operating time | 8–10 hours |
| Levelness tolerance | 3 mm / 2 m |
| Point laser measurement error | 0.075 mm/m |
| Listed productivity | 24 m²/h |
| Listed daily output | 80–100 m² |
| Measurement field of view | 360° |
| Grinding-head wear life | 2,000 m² per unit |
Figures are quoted from the supplied floor leveling brochure. Sensor measurement error and finished-floor levelness are separate specifications. Actual output depends on material, substrate conditions and site setup.
