BIM-based planning
Uses BIM software to generate application paths automatically.
NOVIGEN TECHNOLOGY

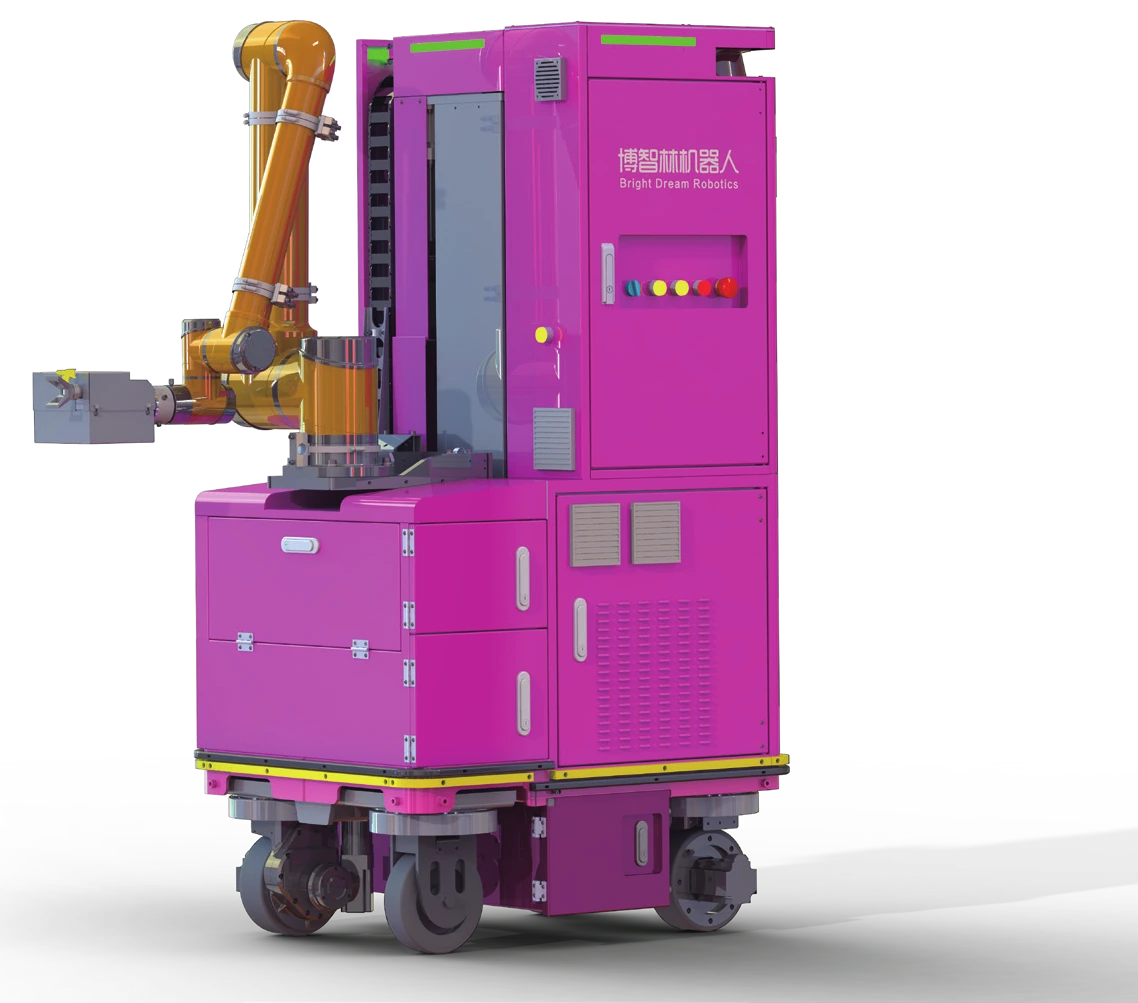

Putty Plastering Robot
An automated putty application robot for interior walls, bay windows and ceilings. BIM-based path planning, laser SLAM navigation and dynamic pressure control support coordinated coating work, with remote app monitoring and dual-battery energy management.
Product capabilities
Laser SLAM navigation
Navigates indoor spaces with laser SLAM and supports automatic obstacle stopping.
Controlled putty application
Combines mobile application with dynamic pressure control for consistent coverage.
Remote monitoring and energy management
Supports app-based monitoring and control, with dual-battery energy management.
Applications
Technical specifications
| Machine weight | 680 kg |
|---|---|
| Overall dimensions | 960 × 760 × 1,750 mm |
| Operating time | ≥5 h |
| Charging time | ≤3.5 h |
| Material tank capacity | 60 L |
| Coverage rate | ≥90% |
| Working height | ≤3,100 mm |
| Positioning accuracy | ±30 mm |
| Travel speed | ≤0.5 m/s |
| Obstacle crossing height | ≤30 mm |
| Gap crossing width | ≤50 mm |
| Maximum slope | ≤10° |
The brochure lists a comprehensive application efficiency of 60 m²/h per coat. Published figures are laboratory data. Actual output depends on material properties, surfaces, application thickness and site conditions.
