Primer and finish coats
Supports a coating workflow of one primer coat and two finish coats.
NOVIGEN TECHNOLOGY

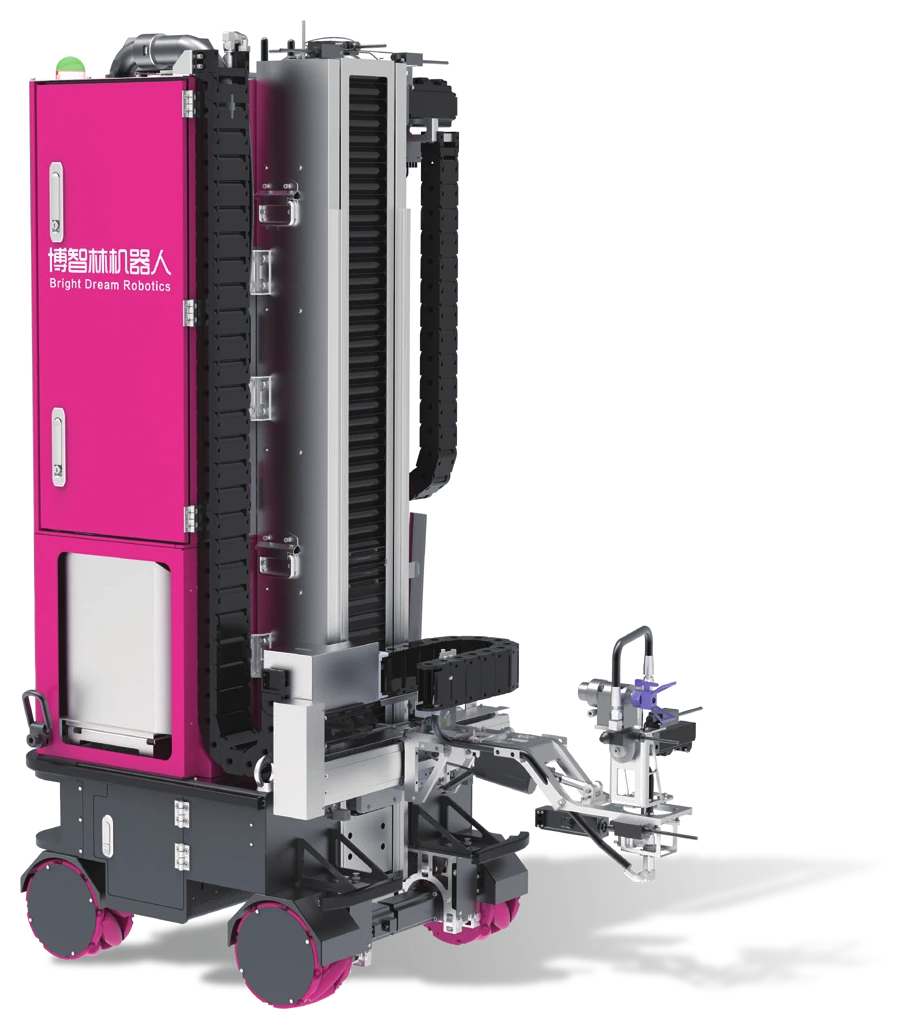

NP320
Indoor Spraying Robot
The NP320 automates indoor latex paint spraying for primer and finish coats. Automatic path planning, parameter control and app-based monitoring support work on walls, ceilings, bay windows and beams in residential and commercial interiors.
Product capabilities
Automatic path planning
Plans spraying paths automatically, with parameter control and offline simulation analysis.
Interior surface coverage
Designed for walls, ceilings, bay windows, beams and plaster mouldings.
App-based monitoring
Monitor automatic spraying operations remotely through the app.
Applications
Technical specifications
| Machine weight | ≤350 kg |
|---|---|
| Overall dimensions | 1,050 × 690 × 1,780 mm |
| Operating time | 5 h |
| Charging time | 2.5 h |
| Paint capacity | 60 L |
| Maximum spraying efficiency | 180 m²/h |
| Spraying height | ≤3,200 mm |
| Positioning accuracy | ±20 mm |
| Travel speed | ≤0.5 m/s |
| Obstacle crossing height | ≤20 mm |
| Maximum slope | ≤6° |
| Gap crossing width | ≤50 mm |
The brochure lists a comprehensive spraying efficiency of 139 m²/h and a maximum spraying efficiency of 180 m²/h; these are different measures. Published figures are laboratory data. Actual output depends on materials, surfaces, coating requirements and site conditions.
