L3O00Layout Marking Robot

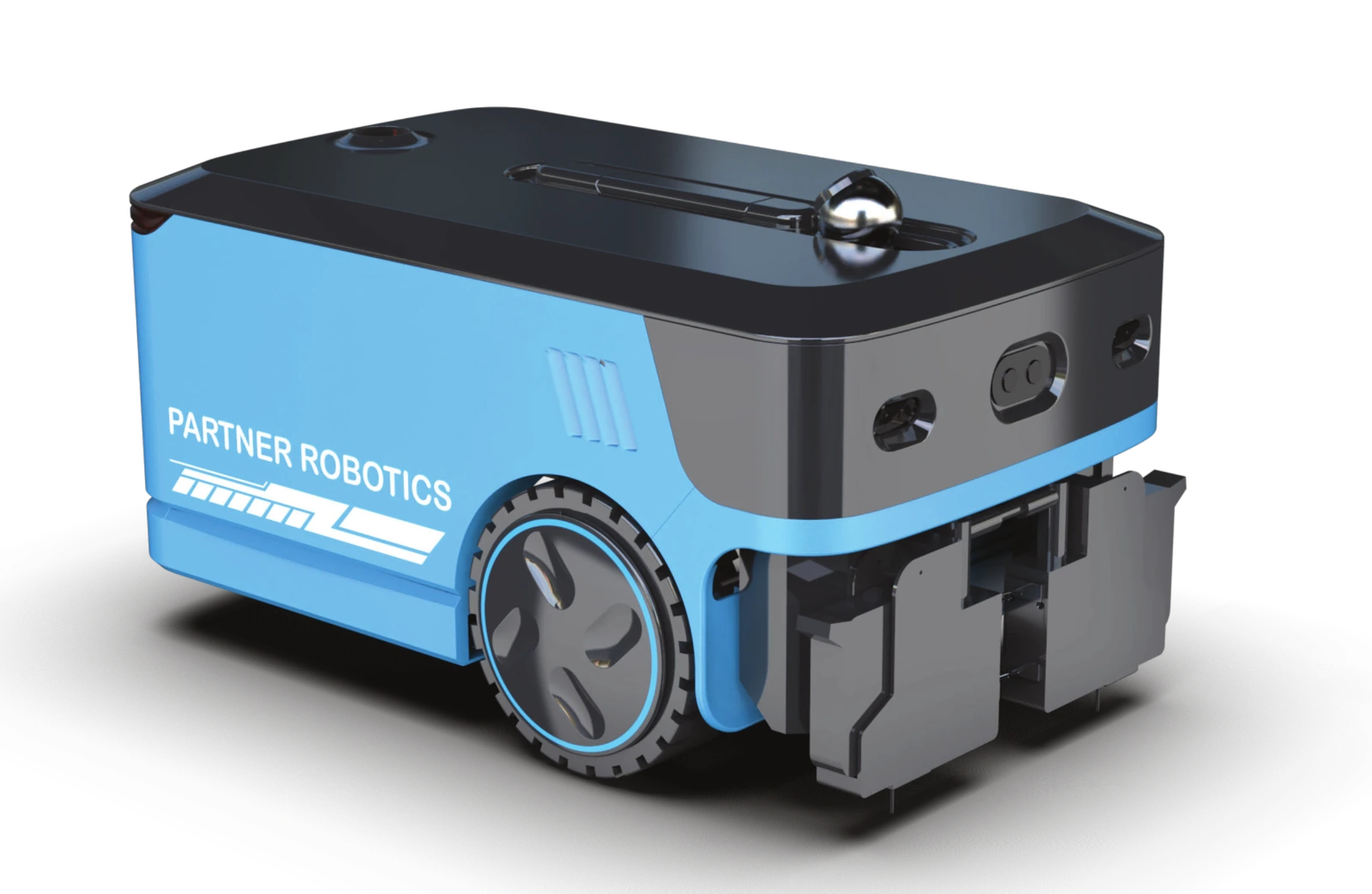

Layout Marking Robot
An autonomous layout marking robot that imports CAD/BIM drawings and plans marking paths using multi-source localization. It supports ground layout work across construction sites and large indoor or outdoor spaces.
CAD/BIM-driven layout marking with autonomous navigation, path planning and recorded marking data.
ENGINEERED FOR THE WORK AHEAD.Discover the details
±3 mm
Marking accuracy300–400 m²/h
Listed productivity≥5 hours
Operating time01 / THE TECHNOLOGY
Product capabilities
CAD/BIM-driven layout marking with autonomous navigation, path planning and recorded marking data.
Autonomous path planning
Localization and route-planning algorithms guide the robot through the work area and around obstacles.
Positioning support
The documented setup connects the robot with a total station for position and orientation calibration.
Recorded marking data
Marking data is recorded and synchronized for traceability and digital project management.
02
Construction workflow
CAD/BIM-driven layout marking with autonomous navigation, path planning and recorded marking data.
Drawing import
Equipment deployment
Path planning
Automated marking
Data synchronization
03 / ON SITE
Built for real spaces.

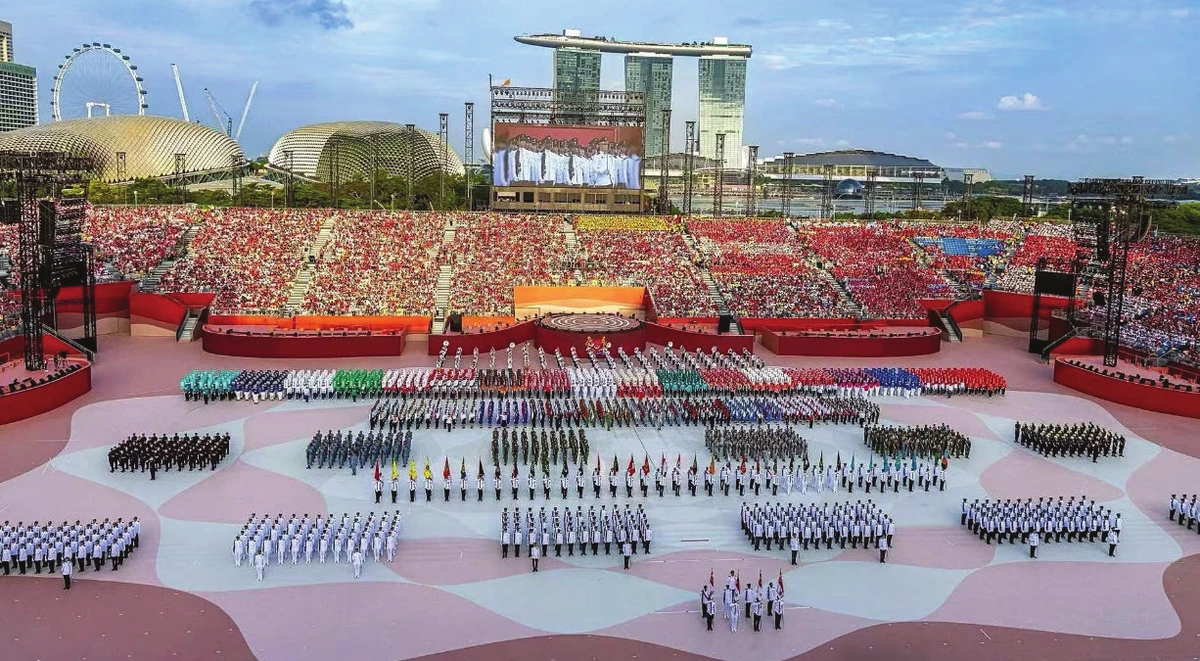

Singapore National Day Parade (2025) ground art

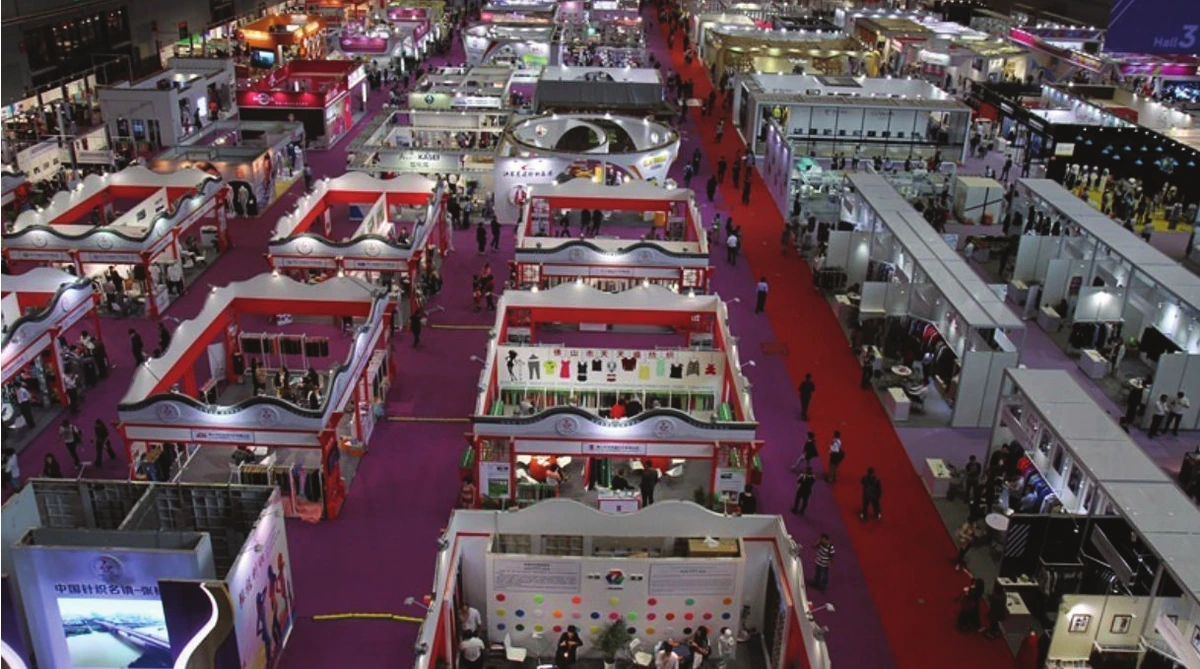

NECC (Shanghai) layout

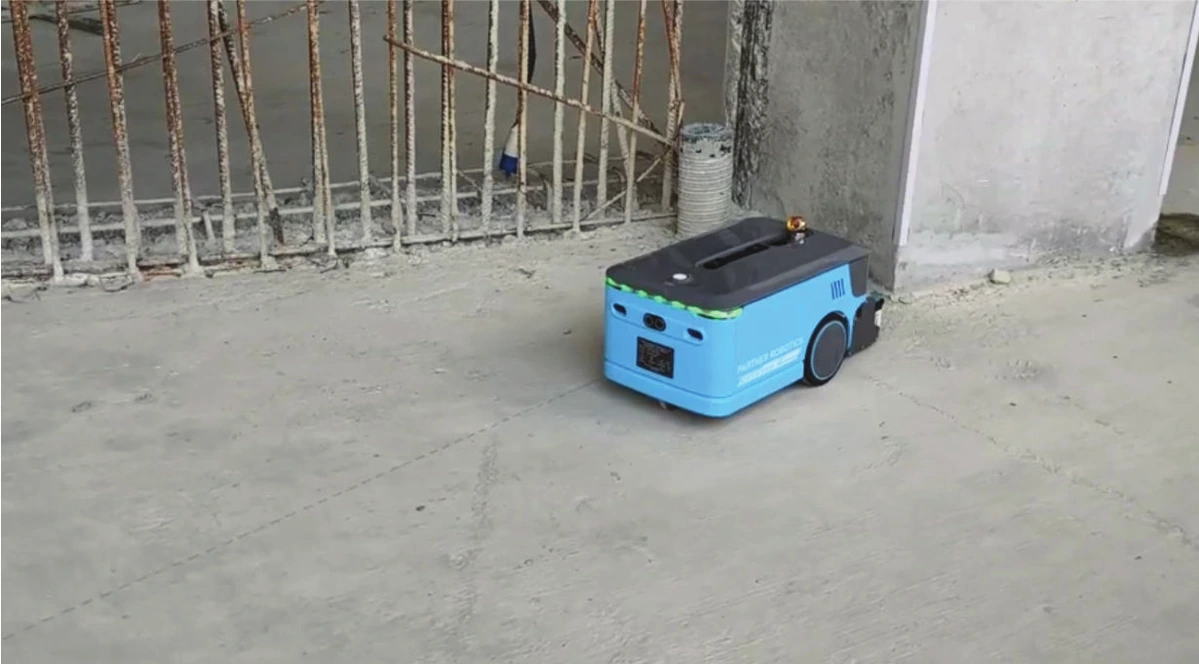

Construction sites
04 / SUPPORTING EQUIPMENT
The workflow, connected.

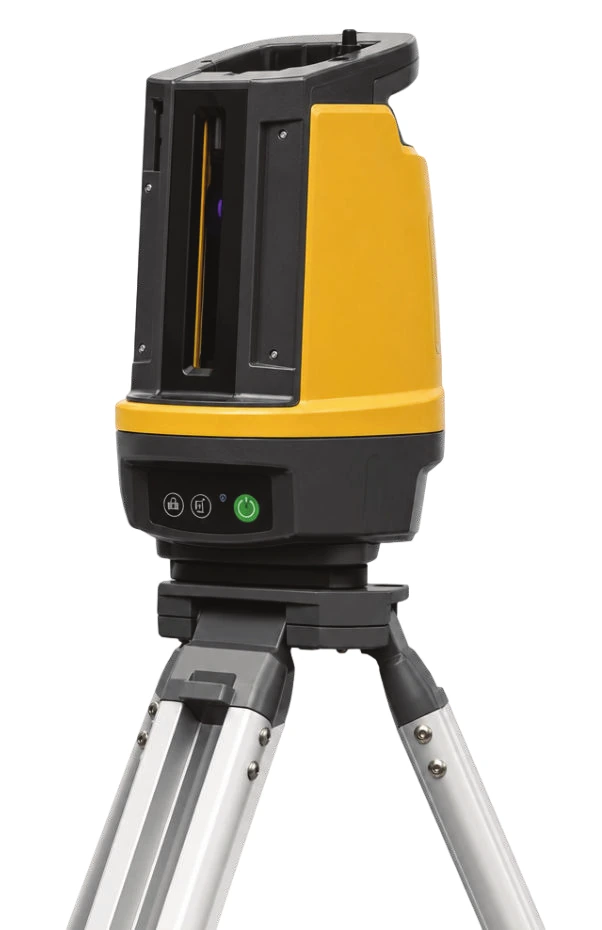

Total station

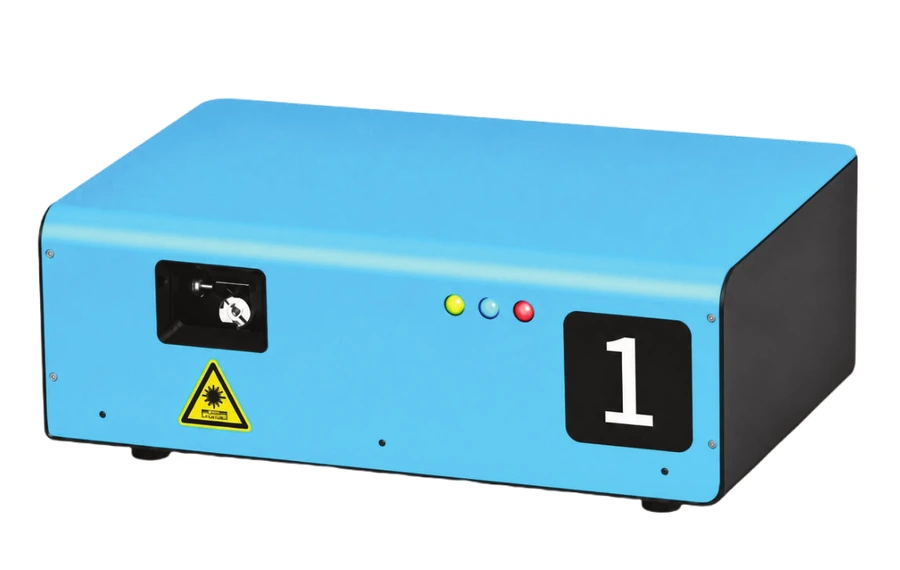

Wall/floor projector
05 / TECHNICAL SPECIFICATIONS
Know your equipment.
L3O00
| Model | L3O00 |
|---|---|
| Overall dimensions | 506 × 316 × 263 mm |
| Machine weight | 21 kg |
| Marking accuracy | ±3 mm |
| Listed productivity | 300–400 m²/h |
| Operating time | ≥5 hours |
| Charging time | 2 hours |
| Voltage | DC 48 V |
| Protection rating | IP54 |
| Listed solid-line marking length | 15,000 m |
| Working speed | ≤1.0 m/s |
| Climbing capability | ≤10° |
Figures are quoted from the supplied layout marking brochure. Confirm drawing requirements, marking method, auxiliary positioning equipment and site conditions with our team. Actual output depends on layout complexity and site setup.
