Constant-force sanding
Uses intelligent constant-force control and parameter-based sanding settings.
NOVIGEN TECHNOLOGY

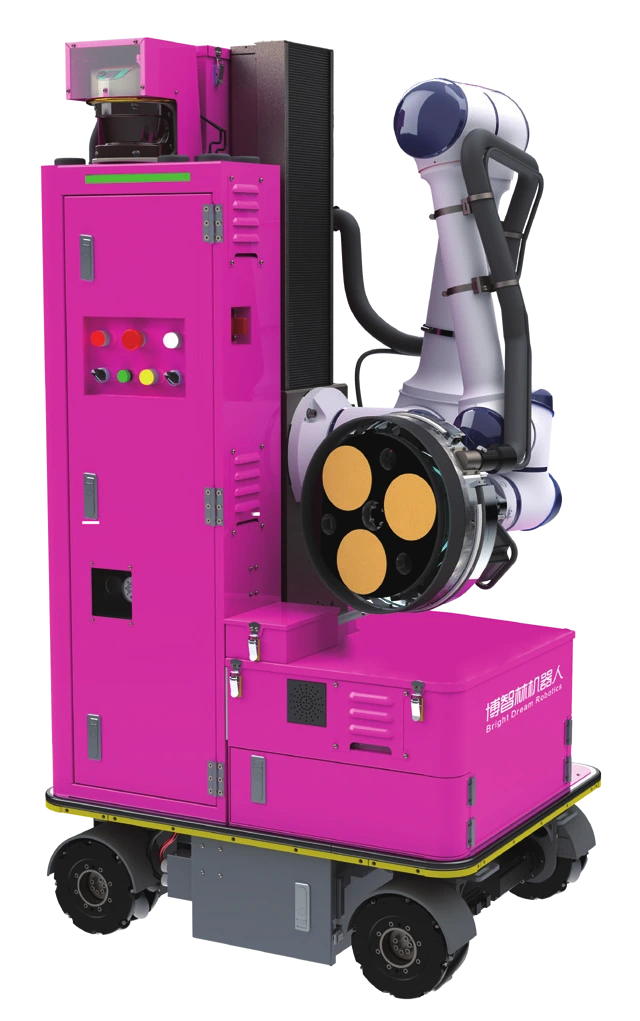

Putty Sanding Robot
An automated putty sanding robot for interior walls and ceilings. Constant-force control, laser distance measurement and automatic path planning support consistent sanding, with integrated dust collection and app-based operation.
Product capabilities
Automatic navigation
Combines automatic navigation and path planning with laser distance measurement.
Integrated dust collection
Collects sanding dust and supports automatic dust discharge.
App-based operation
Supports remote operation through the app for interior sanding work.
Applications
Technical specifications
| Machine weight | 550 kg |
|---|---|
| Overall dimensions | 942 × 752 × 1,750 mm |
| Operating time | ≥4 h |
| Charging time | ≤3 h |
| Dust box capacity | 100 L |
| Power requirement | AC 220 V / 5 kW |
| Travel speed | ≤0.5 m/s |
| Positioning accuracy | ±2 cm |
| Working height | ≤3,200 mm |
| Obstacle crossing height | ≤20 mm |
| Gap crossing width | ≤50 mm |
| Maximum slope | ≤6° |
The brochure lists a comprehensive sanding efficiency of 50 m²/h. Published figures are laboratory data. Actual output depends on putty condition, surface geometry, finish requirements and site conditions.
