Vision-guided alignment
AI vision-servo joint matching works with global elevation and horizontal positioning to guide tile placement.
AI VISION + POSITIONINGP900 PRO / FLOOR TILING ROBOT
A new standard
for floor tiling.
Bring robotic precision to your next project. Integrated adhesive application and tile placement, in one coordinated workflow.
Designed for thin-set floor tile installation.
ENGINEERED FOR THE WORK AHEAD.Discover the details
20–23 m²/h
Rated paving efficiency>6 hours
Rated operating time30 kg
Maximum single-tile weight01 / THE TECHNOLOGY
Every movement.
A considered one.
The P900 PRO brings positioning, adhesive application and tile placement together for a coordinated thin-set installation process.
A controlled grip
A four-point vacuum suction system handles each tile, supported by a 40 kg collaborative robotic arm.
FOUR-POINT VACUUM SYSTEMOne integrated process
Adhesive spreading and floor tiling are integrated into a single machine, reducing the equipment footprint on site.
ADHESIVE + PLACEMENTMovement with purpose
An omnidirectional mobile chassis and high-precision PSD optical sensors support positioning throughout the paving cycle.
OMNIDIRECTIONAL CHASSIS02 / TILE COMPATIBILITY
Different formats.
One capable system.
Support for common large-format floor tiles, with single-tile weights up to 30 kg.
Stack bond50% offset⅓ offset
Compatible paving patterns listed in the product brochure.
01600 × 600mm
02800 × 800mm
03600 × 1,200mm
Additional tile formats may be supported. Confirm compatibility for your project.
03 / ON SITE
Built for real spaces.
See floor tiling robotics at work across commercial, residential and public-space settings.
COMMERCIAL
Commercial interiors
Berlin, Germany
RESIDENTIAL
Villa construction
United Arab Emirates
PUBLIC INFRASTRUCTURE
Airport Terminal 3
Guangzhou Baiyun Airport, China
Selected application references from the P900 PRO product documentation.
04 / SUPPORTING EQUIPMENT
The workflow, connected.
Auxiliary equipment for tile loading, material mixing and bucket lifting.
Tile loading trolley
Stirring & mixing unit
Bucket lift
05 / TECHNICAL SPECIFICATIONS
Know your equipment.
P900 PRO
| Paving efficiency | 20–23 m²/h |
|---|---|
| Compatible tile formats | 600 × 600 / 800 × 800 / 600 × 1,200 mm, etc. |
| Maximum single-tile weight | 30 kg |
| Overall dimensions | 1,300 × 800 × 1,950 mm |
| Machine weight | 640 kg |
| Load capacity | ≤ 880 kg |
| Operating time | > 6 hours |
| Charging time | 5–6 hours |
| Battery capacity | 180 Ah |
| Charging supply | AC 220 V |
| No-load movement speed | ≤ 0.5 m/s |
| Speed while paving | 25–100 mm/s |
| Obstacle height | ≤ 30 mm |
| Climbing ability | ≤ 10° |
Specifications are based on the P900 PRO product brochure. Actual performance depends on tile format, material and site conditions.
06 / SPRAYING & FINISHING
P600 Max
Five processes.
One capable robot.

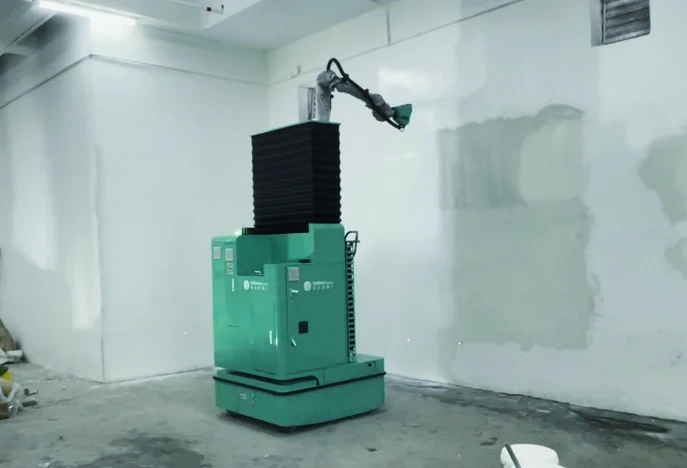

A multifunctional coating robot for putty spraying, scraping, sanding, dust collection and latex paint spraying. Designed for walls, beams, columns and corners in spaces with working heights up to 6 m.
6 m
Working height120 m²/h
Putty spraying & scraping450 m²/h
Latex paint spraying80 m²/h
SandingPublished figures from the P600 Max brochure. Actual output depends on material, surface conditions, application requirements and site setup.
THE P600 MAX WORKFLOW
From preparation
to the final coat.
Interchangeable tools and spatial sensing support a coordinated approach to surface finishing.
Five processes in one
Switch between putty spraying, scraping, sanding, dust collection and latex paint spraying. The brochure lists a 5-minute end-effector changeover.
QUICK-CHANGE TOOLSSpatial awareness
3D scene reconstruction, AI visual semantic segmentation and autonomous path planning support work in open, unstructured environments.
3D VISION + PATH PLANNINGOmnidirectional movement
Four driven omnidirectional wheels and laser positioning help the robot move and position itself around the work area.
FOUR-WHEEL DRIVEReach across surfaces
A six-axis robotic arm and lifting system support coating work on walls, beams, columns and corners, with a listed working height of 6 m.
SIX-AXIS ROBOTIC ARMP600 MAX / PRODUCT FILM
See the system in action.
Take a closer look at the robot, its interchangeable tools and on-site coating workflow.
Product film with Chinese and English on-screen text.
P600 MAX / ON SITE
Surface finishing,
in real settings.
Application references include residential buildings, care facilities and industrial spaces in Singapore and Hong Kong.
RESIDENTIAL

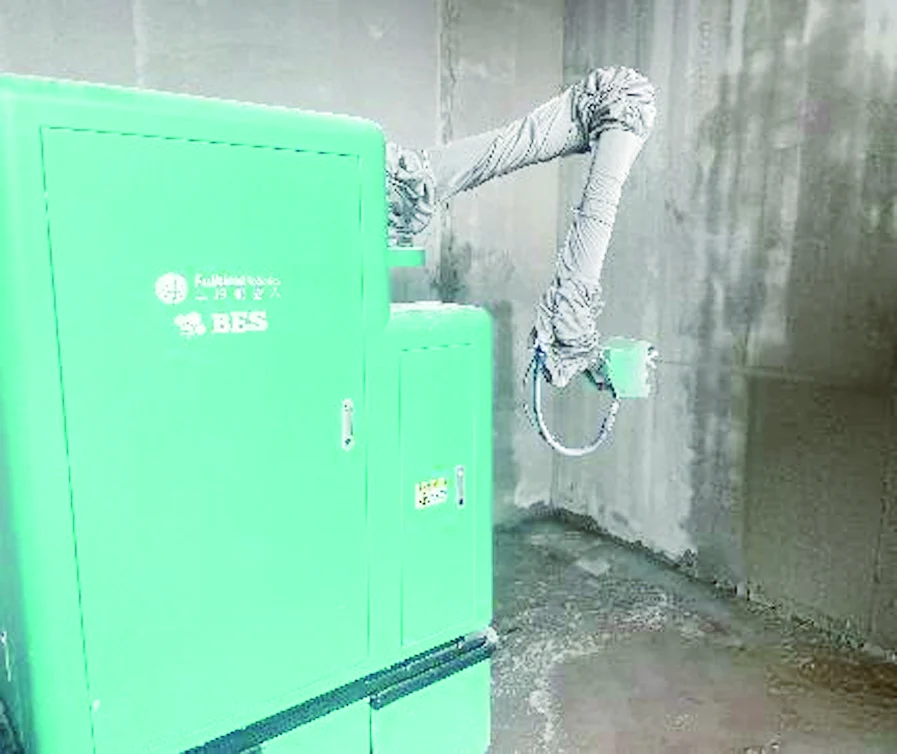

HDB Bishan Ridges
Singapore
CARE FACILITIES

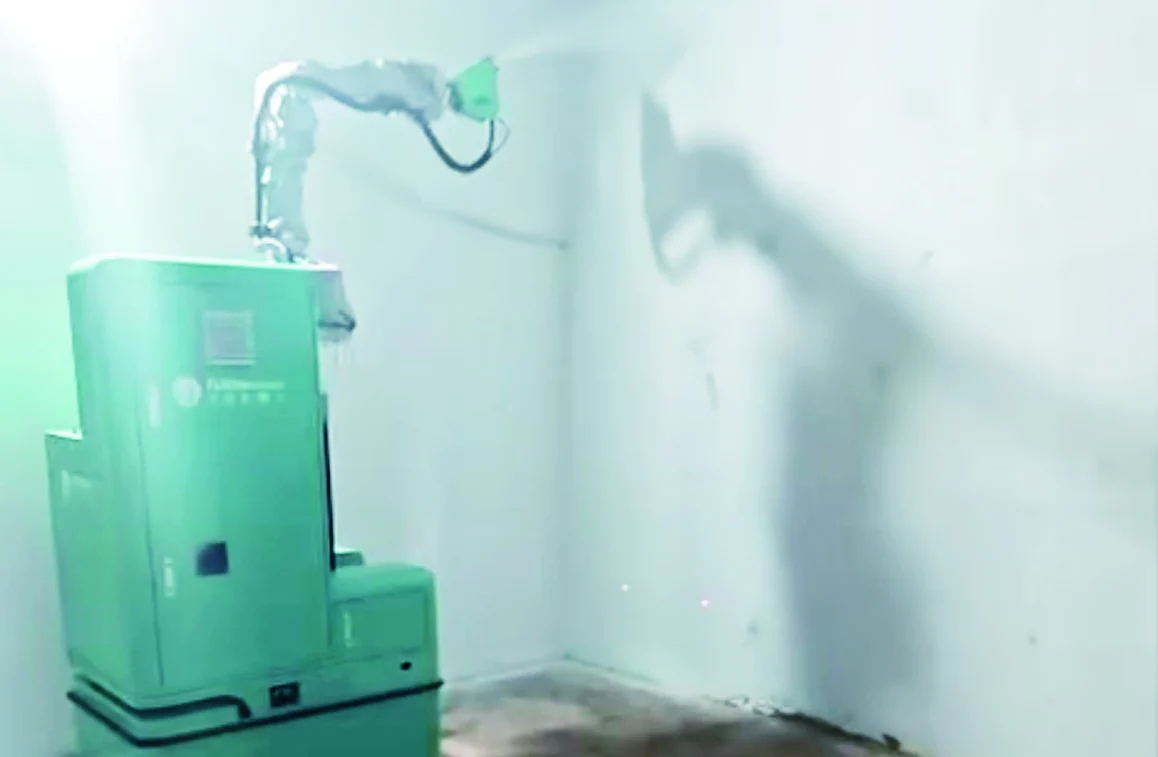

Pelita Road Care Centre
Singapore
INDUSTRIAL

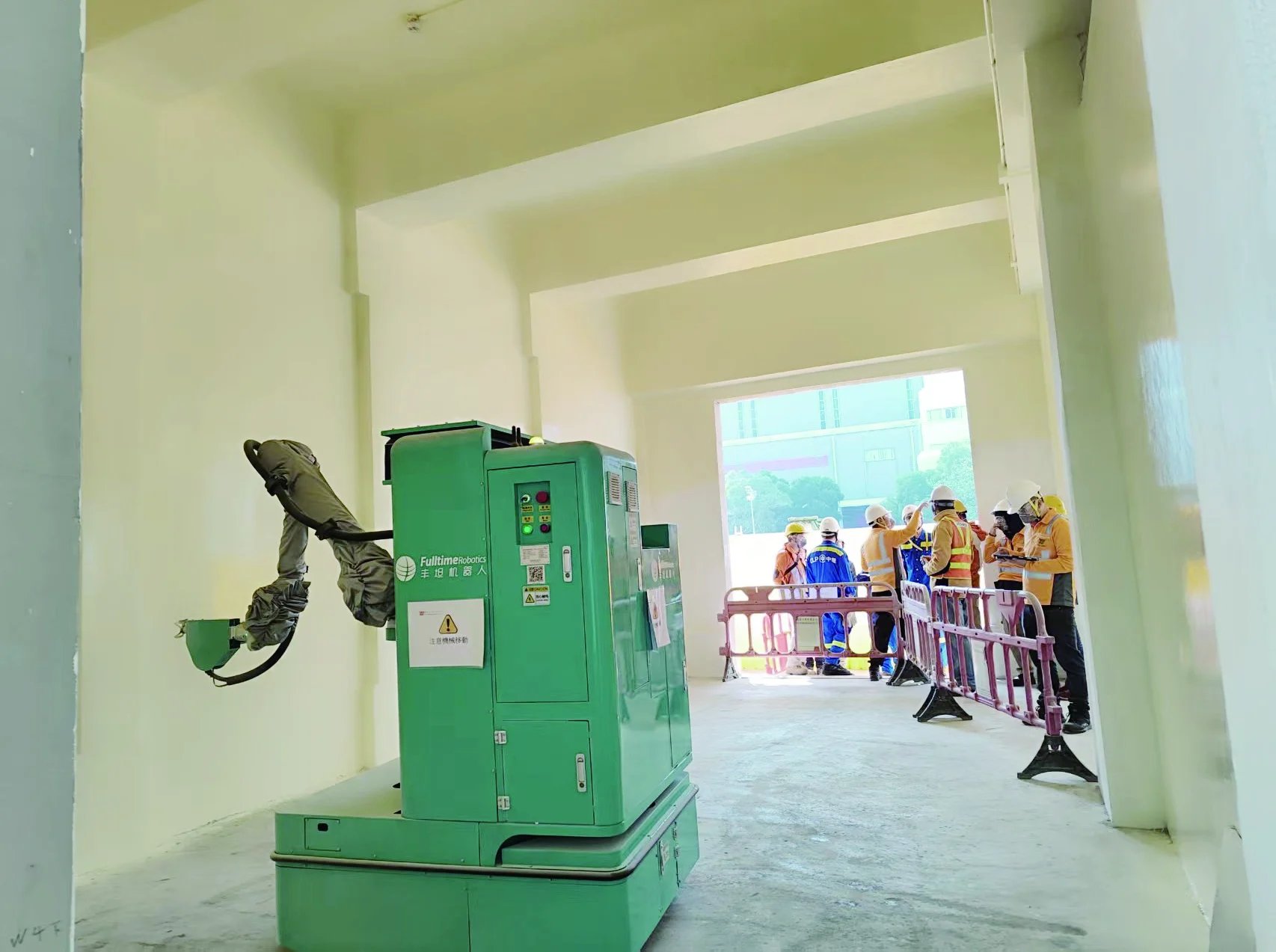

CPPS FS Tank A&A
Hong Kong
Application references from the P600 Max product brochure.
P600 MAX / TECHNICAL SPECIFICATIONS
The details that matter.
P600 Max
| Overall dimensions | 1,400 × 1,080 × 1,780 mm |
|---|---|
| Machine weight | 950 kg |
| Working height | 6 m |
| Drive & positioning | Four driven omnidirectional wheels with laser positioning |
| Operating time | 4 hours |
| Maximum travel speed | 0.5 m/s |
| Positioning accuracy | ±30 mm |
| Braking distance | ≤ 0.1 m |
| Turning radius | 0 m |
| Maximum climbing slope | 10° |
| Maximum crossing gap | 50 mm |
| Body material | Sheet metal |
| Protection rating | IP54 |
| Battery | 48 V / 173 Ah lithium iron phosphate |
| Charging mode | Manual |
| Communication | Wi-Fi 2.4 GHz / 5 GHz |
| Robotic arm | 6 axes; listed arm precision ±0.05 mm |
Specifications are based on the P600 Max product brochure. Robot positioning accuracy and robotic-arm precision are separate specifications. Confirm material compatibility and site requirements with our team.
NOVIGEN TECHNOLOGY specializes in supplying floor tiling robots and spraying robots for the international construction market. We focus on helping contractors, developers, construction companies and equipment distributors find practical automation solutions for their projects. Our aim is to make construction robotics easier to understand, evaluate and integrate into everyday site operations.
Our floor tiling solutions combine adhesive spreading, tile handling, positioning and placement in a coordinated workflow. They support customers seeking greater consistency in installation and more efficient use of labor and equipment. Our spraying robot offering extends this focus to surface spraying applications, with equipment suitability evaluated according to the intended application, material requirements and working environment.
We recognize that every construction project has different demands. Tile dimensions, surface conditions, site access, project schedules and local operating requirements all influence equipment selection. By understanding these details, we help customers compare suitable options and make informed purchasing decisions. Demonstration, training and technical support arrangements can be discussed according to the project location and agreed supply scope.
At NOVIGEN TECHNOLOGY, we value clear communication, practical product information and lasting business relationships. Our goal is to connect construction businesses with robotic equipment that meets real project needs and supports their transition toward more automated construction.
08 / FREQUENTLY ASKED QUESTIONS
Questions,
answered.
Practical answers about both robots, site planning and the next steps for your project.
P900 PRO — Floor Tiling Robot
01What tile sizes can the P900 PRO handle?
The listed compatible formats are 600 × 600 mm, 800 × 800 mm and 600 × 1,200 mm, with a rated maximum single-tile weight of 30 kg. Contact us to confirm compatibility for other tile sizes or materials.
02What is the paving efficiency of the robot?
Rated paving efficiency is 20–23 m² per hour. Actual output varies with tile format, paving pattern, material preparation, site layout and operating conditions.
03Which parts of the tiling process does the robot support?
The P900 PRO combines adhesive spreading, tile handling, positioning and placement in one coordinated thin-set installation workflow.
04What types of projects is the robot suitable for?
It is designed for floor-tile installation in commercial buildings, residential developments and public infrastructure projects. Project suitability is assessed according to the floor plan, tile specifications and site conditions.
05What paving patterns are supported?
The listed patterns are standard grid (stack bond), running bond (50% offset) and one-third offset. Other layouts require project-specific review.
06How long can the robot operate, and how long does charging take?
Rated operating time is more than six hours, and rated charging time is 5–6 hours using AC 220 V. Power compatibility should be confirmed for the destination market.
07What information is needed for a project evaluation?
Please provide the project location, estimated floor area, tile dimensions and weight, paving pattern, construction schedule and relevant site requirements. Drawings and site photos can help us assess compatibility.
08What training and technical support options are available?
Operator training, commissioning, remote assistance and on-site support arrangements are confirmed individually according to the project location and agreed delivery scope.
09Can I arrange a product demonstration?
Demonstration availability depends on location and schedule. Submit the Book a Demo form with your country or region and preferred timing, and our team will confirm the available options.
10How can I request a quotation?
Submit the Request a Quote form with your project location, tile specifications, estimated area and required schedule. Our team will review the information and follow up with an appropriate configuration and quotation.
P600 Max — Spraying & Finishing Robot
11Which processes does the P600 Max support?
The P600 Max combines putty spraying, scraping, sanding, dust collection and latex paint spraying using interchangeable tools. Material compatibility and the required tool configuration should be confirmed for your application.
12What is the working height of the P600 Max?
The brochure lists a working height of 6 m and applications on walls, beams, columns and corners. Actual suitability depends on access, obstacles, surface geometry and the required process.
13How do I request a P600 Max quotation or demonstration?
Select P600 Max in the inquiry form and share your project location, work area, coating material, working height and schedule. Our team will discuss the configuration and demonstration options available for your project.
Discuss the P600 Max with usSTART A CONVERSATION
Bring us your
next construction project.
Tell our international sales team which robot you are interested in, your application and project schedule. We will follow up with suitable product information and next steps.
